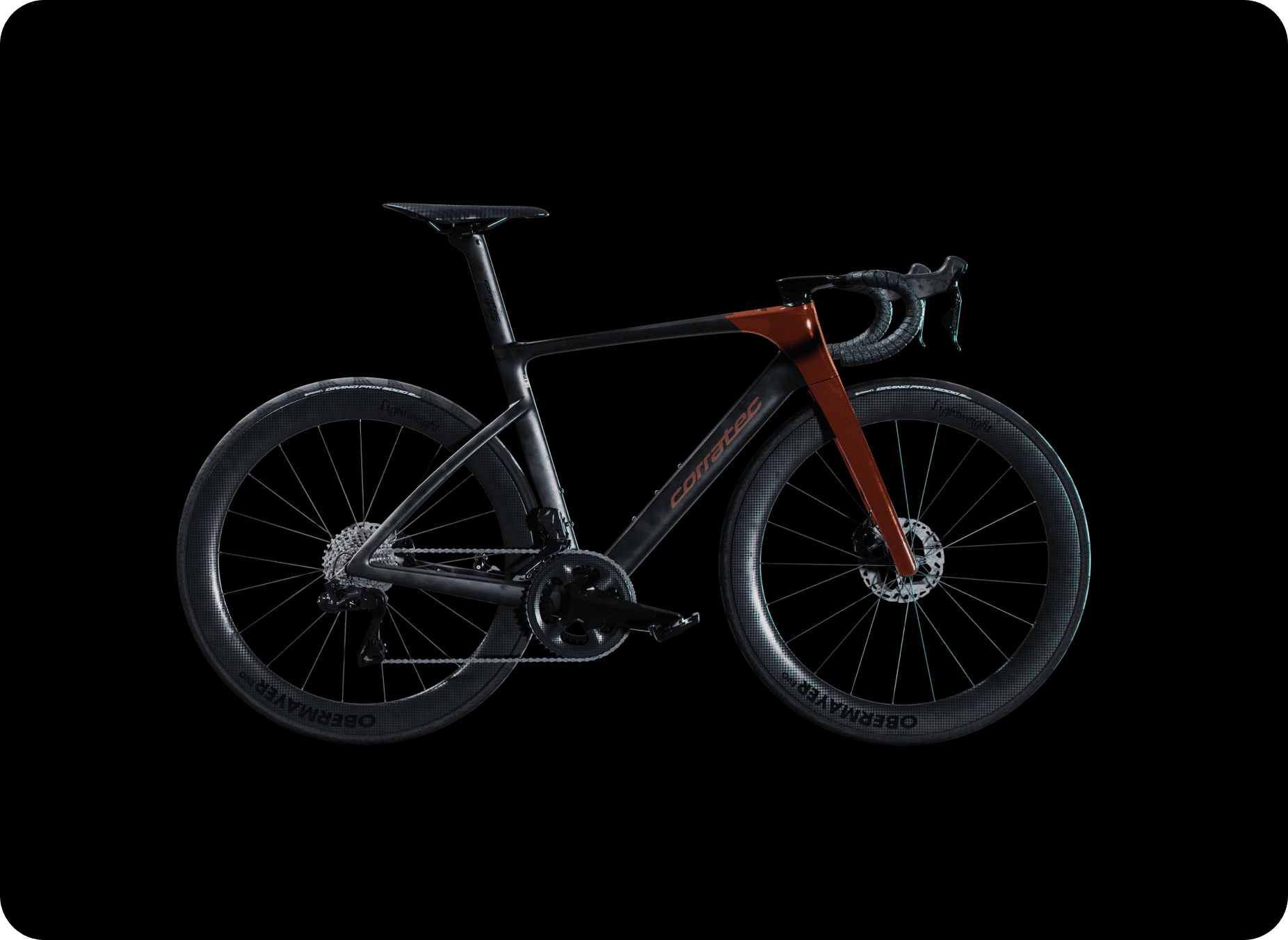

corratec Ultra

BK29530

CCT EVO ULTRA

28" Wheel Size
DI2 Ready
Tapered Headtube
Internal Cable Routing
Through Axle

Our masterpiece of road bike technology. The ULTRA is ultra-light and offers unbeatable components for high speeds. Its innovative concept guarantees outstanding performance and superior comfort.

Material
Carbon
Weight
approx. 6.8 kg
Choose your frame size

Frame Geometry

Choose your look
Select your perfect cockpit size
Set price incl. VAT
25.000 €

ULTRA equipment

All this is included with your bike

To achieve top performance on your bike, you need the right equipment. That's why, when it comes to corratec clothing, we pay a lot of attention to high-quality materials and the best tailoring produced in Italy.

ULTRA Jerseys long / Short

  • 62 % polyester, 38 % polyester PBT, extremely quick-drying, anti-bacterial
  • Carbon fibre mesh for optimum ventilation and moisture management
  • Sizes: XXS-4XL

ULTRA bibtights Long / Short

  • Lycra 225g for high compression
  • anatomically shaped
  • elastic silicone leg cuffs
  • Vuelta Carbon S.A.T high resistant 4-fold stitching
  • Sizes: XXS – 4XL

ULTRA gloves

  • Lightweight gloves with elasticated cuff
  • Made of aerodynamic lycra fabric with silicone palm for optimum grip
  • Breathable material for a comfortable fit
  • Sizes: XS – 3XL

ULTRA cap

  • Stretchy and ULTRA-lightweight cap for cyclists that fits perfectly under your helmet. Made from 100% polyester, unisex and available in one size.

CORRATEC ULTRA Helmet

  • The corratec ULTRA helmet sets new standards in terms of performance and functionality. This innovative race helmet has new anatomical features and first-class aerodynamics.

ULTRA socks

  • ULTRA socks made of high-speed Lycra, manufactured with Skinlife and Aero fabric for optimum comfort.

All in one: The ULTRA already includes a bike case, a mini toolkit and a cover.

ULTRA toolkit

Discover our lightweight, high-end mini toolkit that offers everything you need when you're out on a ride. A T-ratchet and a titanium torque kit helps you carry out any work precisely, and it even has a torque meter. Carbon-safe tyre levers with integrated CO2 regulator for quick repairs and an efficient mini pump. The wax-based lubricant ensures that your bike is always well lubricated. Perfect for all bike lovers!

CORRATEC ULTRA case

Discover the innovative hybrid bike travel bag for road bikes! Thanks to the extra wide chassis and various handles, it's easy to transport as only the wheels and pedals need to be removed. A new internal road bike stand is also included. Maximum saddle height 86 cm, max. handlebar width 50 cm and max. wheelbase 112 cm, this bag offers perfect protection for your ULTRA.

ULTRA Cover

Protects your ULTRA in the car, at home or is even perfect on a bike rack. Can also be used with a wall bracket at home. With zips on all sides and made from high-quality material. Machine washable and includes a storage bag as well.

Equipment

Specifications

Base

Cockpit

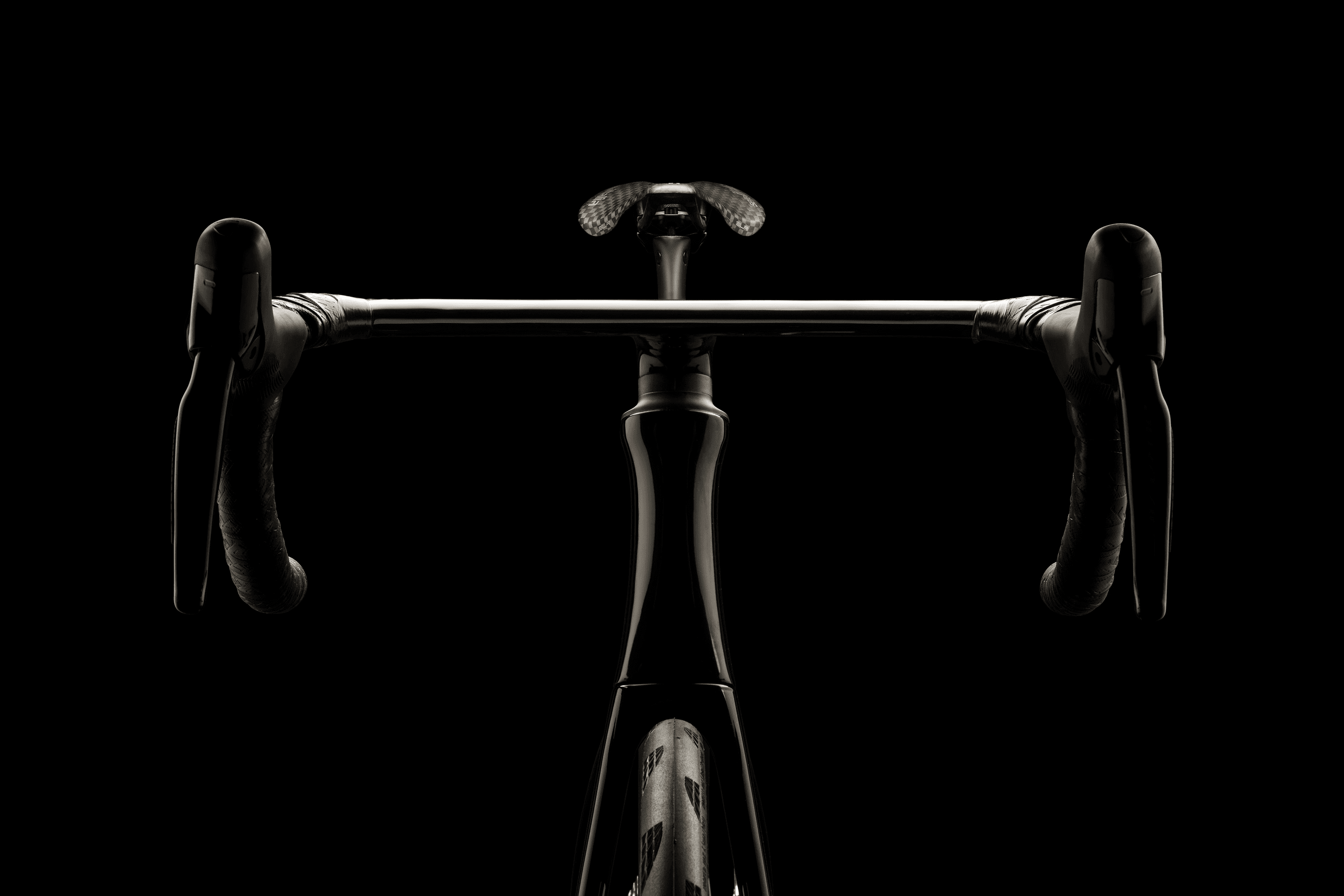

CCT EVO ULTRA Carbon Aero Cockpit

  • Four different stems / handlebar combinations
  • Aero shape / profile
  • Fully integrated cabling (mechanical / electrical)
  • Integrated top cap design
  • Ergonomically shaped drops
  • Material: Full carbon
  • Stem angle: 12.5%
  • Reach: 80 mm
  • Gradient: 130 mm
  • Weight: approx. 350 g

Frame

CCT EVO ULTRA Frame

  • Aero profile tubes – developed in-house
  • Aero optimised details (complete system integration)
  • ICR headset (integrated) - TOKEN with CeramicSpeed bearing
  • Integrated cable routing (mechanical + electrical shifting)
  • T47 asymmetric bottom bracket design
  • 12 x 142 mm thru axle (alloy)
  • Fully integrated seatpost clamp
  • 3-way adjustable braze-on bracket for front derailleur
  • 2 different hangers for rear derailleur
  • Headset stiffness: 110 Nm/°
  • Material: Full carbon
  • Bottom bracket stiffness: 80 N/m
  • Weight: approx. 800 g (unpainted)

Fork

CCT EVO ULTRA Fork

  • Integrated cable routing to the front DISC
  • Conical steering tube – 1 1/8″ x 1 1/2″
  • 12 x 100 mm thru axle
  • All brands of 30 mm tyres fit
  • Material: Full carbon
  • Lateral stiffness fork: 53 N/mm
  • Weight: approx. 330 g

Seatpost

corratec Carbon Aero

  • Two different lengths (300mm and 370mm)
  • Aero shape
  • Universal saddle clamping mechanism (fits round and oval saddle rails)
  • 10 mm offset
  • Minimum 65mm insert
  • Seatpost conformity: The seatpost requires a force of 160 N to bend one vertical millimetre
  • Material: Full carbon
  • Weight: approx. 200 g

Saddle

Selle Italia SLR BOOST TEKNO Superflow Carbon

  • Handmade by master craftsmen
  • The SuperFlow technology drastically reduces all physical restrictions that can be triggered by long-term pressure on the perineal area.
  • Shell: 100% carbon fibre
  • Weight: super light 95 g

Headset

CeramicSpeed Lager

  • Handmade by master craftsmen

Screws

Carbon Titanium Schrauben

  • Super light bottle cage screws

Drive

Crankset

SRM Origin PM9 Look Carbon + 50/34T Carbon Ti Chainrings

  • PowerMeter with modular concept
  • Gold-Standard for training with performance data
  • PowerMeter 9 can be used with ANT+ and Bluetooth LE
  • LOOK: Thanks to its Trilobe technology, variable LOOK carbon crank arms with the option of choosing between 170 mm, 172.5 mm and 175 mm crank length.
  • Total weight: approx. 252 g
  • Super-light and stiff Carbon Ti chainrings made of carbon, aluminium and titanium for precise upshifting and downshifting (mechanical/electronic shifting)

Shifting Group

Shimano Dura Ace Di2 9250

  • Tidy cockpit thanks to wireless connections enables lightning-fast shifting
  • Battery life: 1.5 to 2 years
  • Unique ergonomics based on professional feedback
  • Compatible with satellite shifters
  • SERVO WAVE technology for optimum brake control
  • Carbon brake levers and titanium parts
  • Compatible with cable connection (for e-bikes)
  • Fastest rear derailleur ever, 58 % faster than FD-R9150

Cassette

Shimano Dura Ace CS-R9200 12s: 11-34T

  • Faster, smoother shifting with maximum pedal load
  • Revised 12-speed gradation for first-class efficiency and optimum acceleration in all situations

Pulley

CeramicSpeed OSPW for Shimano Dura Ace Di2 RD-R 9250

  • fastest pulley system in the world
  • offers energy savings from 2.4 watts compared to standard Shimano systems
  • Industry leading product chosen by many of the world's leading cycling teams and professional triathletes

Front Derailleur

Shimano Dura Ace Di2 FD-R 9250

Inner Bearing

Handmade CeramicSpeed T47a

Wheels / Brakes

Wheel Set

Obermayer EVO Black ED SH 11 EXP Full Carbon

  • Tubeless, 24mm rim width
  • CeramicSpeed Bearings
  • One of the lightest disc full carbon wheelsets with a weight of 1,230 grams
  • Maximum acceleration thanks to excellent stiffness/weight ratio
  • High stiffness and consequently direct power transmission without energy loss
  • Tubeless technology for improved rolling characteristics
  • Lightweight stands for high-end quality "Made in Germany"
  • Tour test winner 2/2023

Rotors

Carbon Ti X-Rotor SteelCarbon 3 160/140mm Centerlock (Stahl/Carbon/Titanium/Alu)

  • super-lightweight, semi-floating disc rotor with a steel braking surface, carbon fiber inner body, Al7075 centerlock-specific adapter, laser-engraved titanium protection plate and mounting rivets
  • The brake discs now have a profile with rounded CNC-milled edges, which increases safety and complies with UCI regulations
  • The 1.8 mm thick special steel chain has been redesigned to improve braking performance, enhance heat dissipation and enable more even pad wear
  • The rivets and washers are made of grade 5 titanium and, in line with previous versions, represent a highly technical solution that guarantees a high degree of lightness, strength and reliability

Brake Caliper

Shimano Dura Ace BR-R9270

  • One-piece brake caliper construction for maximum rigidity and low weight

Tires

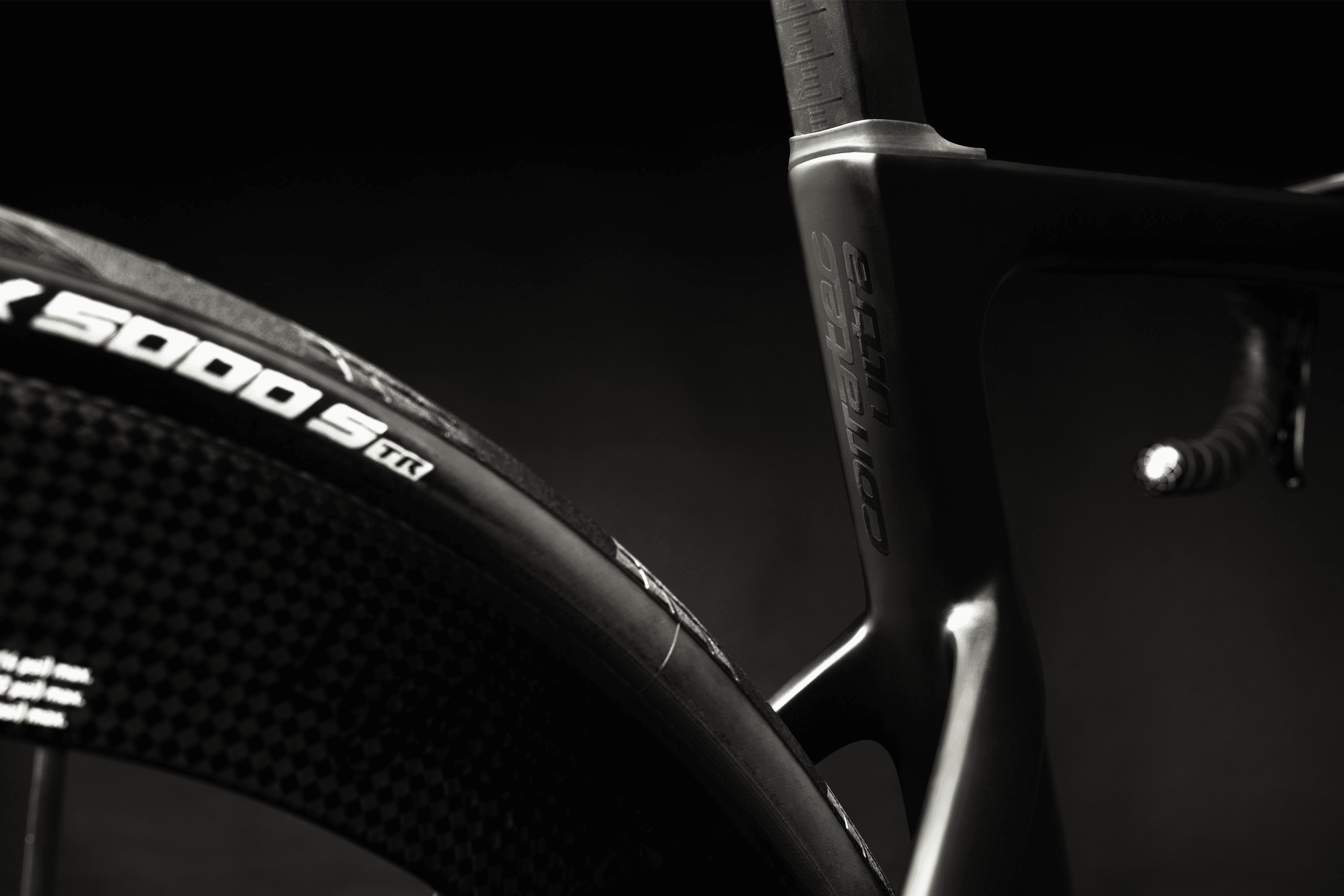

Continental Grand Prix 5000S TR 28-622 black foldable

Brake / Shift Levers

Shimano Dura-Ace ST-R9270 Dual Control

  • SERVO WAVE technology for optimum brake control
  • Carbon brake lever and titanium parts

*Maximum permissible load (including rider and equipment) 90 kg
